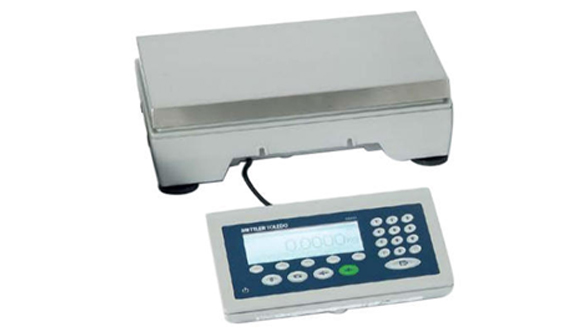

ICS685 industrial compact scale for fast production

On Mar 28, 2020

Speed counts in today’s competitive environment. Manufacturers not only deliver error free, high-quality products, but also need to produce on time. With the new ICS685 Industrial Compact Scales, you can achieve both. Benefit from an intuitive user menu, with easy-to-use weighing applications, an extremely robust design and wide range of construction types, capacities and the right weighing performance.

Intuitive

Easy to read results through a large, bright full color TFT display
Colored indication if weight or count is below, in or above target
Fast input of article data or average piece weights with a large alphanumeric keypad
Fast access to key functions through configurable soft keys

Robust and flexible

High durability and flexibility with:

Extremely rugged die-cast aluminum housing
Robust foil keypad
Dust-proof IP65 protected terminals
Mobile operation with rechargeable battery pack (up to 15 hours continuous operation)

Powerful

Choose the right performance:

Approved resolution up to 61000e OIML
Non-approved resolution up to 610000d
Fully Automated Calibration Technology (FACT)
Capacities from 0.6 kg x 0.001 g up to 600 kg x 20 g

Applications

Smart Counting

Straight-forward Average Piece Weight determination
Up to four scales connectable
Average Piece Weight optimization
Advanced user prompting

Fast Totalizing/Accumulation

Simple Totalizing or Totalizing to a target weight or count
Undo and memory function tracking all weighing’s / counts, incl. statistics

Intuitive Checkweighing/Filling

Smart manual checkweighing, filling and check counting
colorWeight® colored display or bar graph
Targets: absolute, in %,

Fast and Error Free Operation with Smart Counting Functionalities

Fast piece counting:

Intuitive user menu, straightforward Average Piece Weight (APW) determination at a key stroke
Highly configurable color display
Configurable soft keys for fast access to key functions
Lockable hard keys to avoid misuse
Advanced user prompting, configurable according to your processes and guides operators fast
and reliably through their daily counting tasks
User Management: Different user profiles with allocated functions such as language, assigned
soft keys, type of user prompting or locked hard keys

Accurate counting through:

Reliable, high-resolution load cells delivering repeatable results
Connectivity of higher resolutions sampling scales or higher capacity bulk scales (up to four
scales)
Comprehensive statistics on standard deviation, mean value of the APW, median, maximum,
minimum values
APW optimization automatically adjusts the APW during the counting process leading to an
improved counting accuracy and less error due to hand counted sample pieces
Tolerance limits for APW deviation prohibits errors from hand counted sample pieces
Easy scale leveling improving the counting result

For More information, visit our page on www.mt.com
