HIWIN Cartesian Robots: Designed to Revolutionize Manufacturing

HIWIN’s Cartesian Robots are assembled using Single-Axis Robots that are tailored to meet specific customer requirements. By utilizing HIWIN’s expertise and precise manufacturing technology, the company delivers customized integration, ensuring optimized performance for various applications.

Modular Solutions for Efficient Manufacturing

HIWIN Cartesian Robot is an essential component in automated machinery and production lines, designed to streamline operations with precision and reliability. HIWIN’s Cartesian Robots are assembled using Single-Axis Robots that are tailored to meet specific customer requirements.

By utilizing HIWIN’s expertise and precise manufacturing technology, the company delivers customized integration, ensuring optimized performance for various applications.

HIWIN Single-Axis Robots are modular solutions built from years of innovation, featuring proprietary ballscrew and linear guideway developed and manufactured in-house. This integration of ballscrew and linear guideway into a single-axis robot module offers a modularized design that simplifies installation and system inspection, saving both time and cost for customers. When paired with HIWIN’s Servo Motor and E series drive, the robot provides high-speed, precision positioning control, creating a robust mechatronic solution that integrates seamlessly into any automation setup. This easy-to-install, compact, high-precision system is suitable for a wide range of requirements, providing a space-saving option that adapts flexibly to various specifications.

Customization to Fulfill Customer Needs

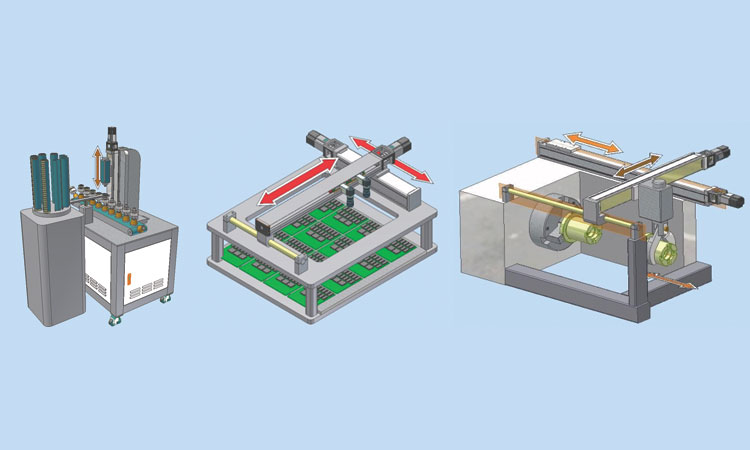

HIWIN offers a comprehensive selection of Single-axis robots and accessories, allowing customization to meet specific needs. The Single-Axis Robot system offers two drive types: ballscrew and belt, with AC motor output options ranging from 30W to 750W, which can be driven by a servo or stepper motor. The motor connection type is versatile, accommodating direct, bottom, internal, left, or right placement based on available space. Stroke lengths vary from 100mm to 2,000mm, depending on screw speed limits, allowing customers to choose configurations that align with their operational demands. In addition, HIWIN’s modularized system can be easily transformed into a multi-axis configuration, supporting various types of setups including cantilever, cross, moving arm, and polar types.

Wide Range of Applications with Energy Efficiency

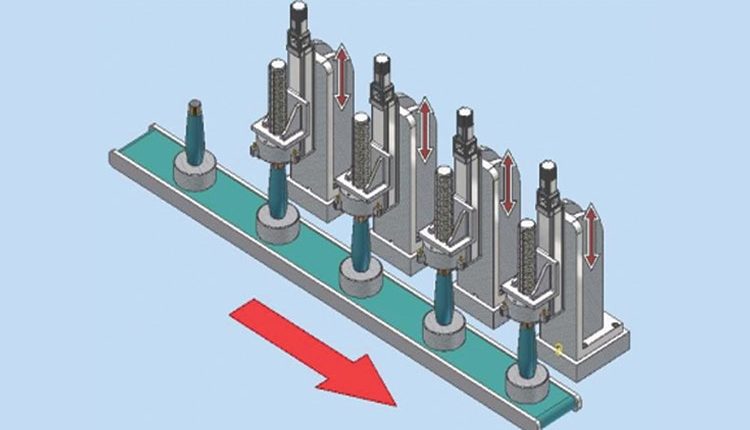

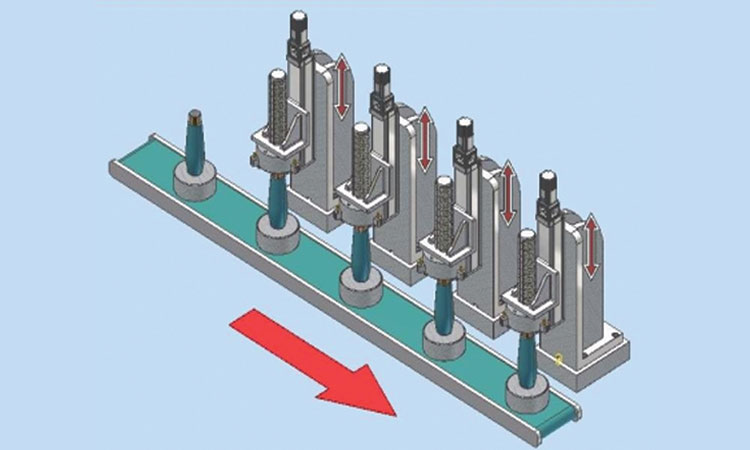

HIWIN Cartesian Robots support a wide range of applications, such as automatic soldering, screw feeding, adhesive lamination, CCD lens shifting, automated spray painting, cutting, semiconductor manufacturing processes, and more. Each single-axis robot includes essential components such as a motor, drive, and controller, with HIWIN offering a selection of top-quality servo motors and drives that can be tailored to specific project needs. This adaptability also makes Cartesian Robots ideal for replacing traditional hydraulic and pneumatic cylinders, which significantly reduces energy consumption and increases output.

Easy and User-friendlySetup

With a focus on efficiency and sustainability, HIWIN’s modular Cartesian Robots offer quick assembly, simple operation, and economical advantages, making them indispensable for automated systems that require both performance and environmental responsibility.
