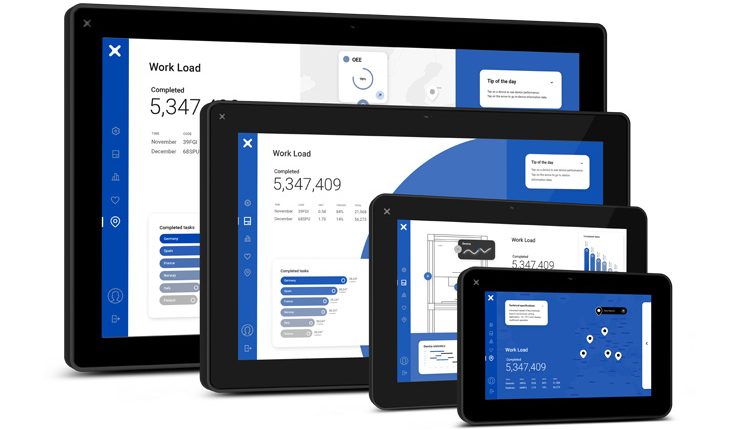

Introducing JSmart700M-WEB


JSmart700M-WEB is the ideal product for field installation in critical areas. High-resolution display with multitouch PCAP touchscreen with a robust glass front. They are the ideal choice for all demanding IoT edge applications in factory, marine and building automation where powerful and performing HTML5 web browser is needed.

Power-over-Ethernet (PoE) for maximum simplicity of connection using standard CAT5 wiring. The availability of a Wi-Fi interface enhances the device integration, while the NFC broadens the device applications. Full IP protection with the use of dedicated connectors for the maximum flexibility of installation, from mounting arm to a simple M22 hole.

The JSmart700M-WEB products include a Chromium based HTML5 browser supporting kiosk mode operation. Supports Corvina Cloud secure connectivity.

As companies move to a server-centric model to maintain flexibility in hardware and software choices, a web panel’s industrial need has increased. At first, very budget-based hardware led to many faults and maintenance issues on the shop floor. Then Industrial PCs were used using android, but these lacked an extensive temperature range and multiple certifications.

What has been missing has been an industrial-grade panel with enough computing power to run the most sophisticated applications, the correct UI and UX for the industrial sector, and a multi-year possible usage.

Introducing JSmart700M-WEB

Field-ready Web based HMI

  • Chromium based HTML5 Browser
  • Easy to use browser setting application
  • PCAP Touchscreen Multitouch
  • 10/100 Ethernet port PoE
  • Wi-Fi Connection and NFC Device
  • Full IP protection; ideal for mountingarm installation
  • Operating temperature -20°C to +55°C
  • UL 61010-1 approval.
