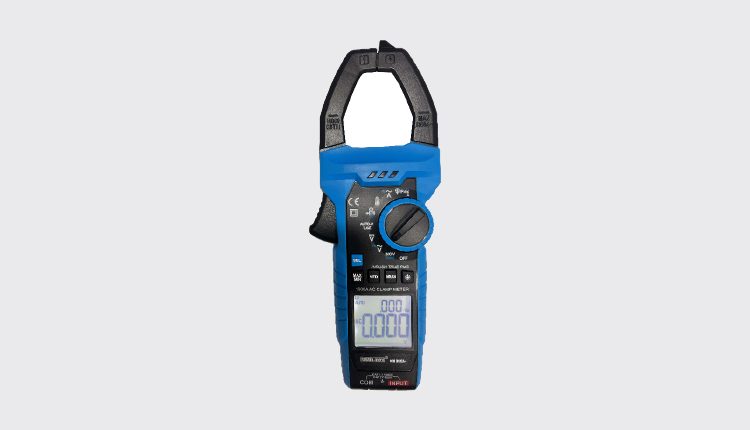

“KUSAM-MECO” 1000A AC Digital Clampmeter with Inrush Current : MODEL – KM 999A+

KUSAM-MECO has introduced a new sturdy rugged 6000 Counts  Clampmeter which can measure upto 1000 Amps AC. The jaw opening is 42 mm.  It is an upgrade of the earlier model KM 999. It is an Atoranging clampmeter. It has functions of measuring AC Current, AC Voltage, DC Voltage, Auto V LoZ DC Voltage, AC Coltage, Auto V LoZ  AC Voltage, Capacitance Resistance, InRush Current, Temperature, Diode  Test, NCV Test. It measures AC Current in 3 ranges, 60,600,1000 Amperes; AC Voltage in 4 ranges, 6,60,600,750 Volts; DC Volts in 5 ranges, 600 mV,6 V, 60 V, 600 V, 1000 V; Capacitance in 6 ranges, 600 nF,6 micro F,60 micro F, 600 micro F, 6 mF, 60 mF; Resistance in 6 ranges, 600 Ohms, 6 K Ohms, 60 K Ohms, 600 K Ohms, 6 M Ohms, 60 M ohms;  Inrush Current 1000 Amps; Temperature -20 deg. To 1000 deg. . The Safety of the instrument is CAT III 1000 V & CAT IV 600 V.  It can also measure the  frequency & Voltage of VFDs. It has NCV function. It can display MAX/MIN values. To preserve the battery, it has Auto Power OFF function (10 minutes of inaction ). It has Low Battery indication to warn the   user to change the batteries timely. It operates on 1.5 X 3 AAA batteries. The over voltage protection on Resistance , Diode, Temperature, Capacitance range is 1000 Volts. AC. The instrument is supplied with Test Leads, User Manual, Battery, Thermocouple ( for 250 Degrees) and Carrying Case.

For more information,
www.kusamelectrical.com
