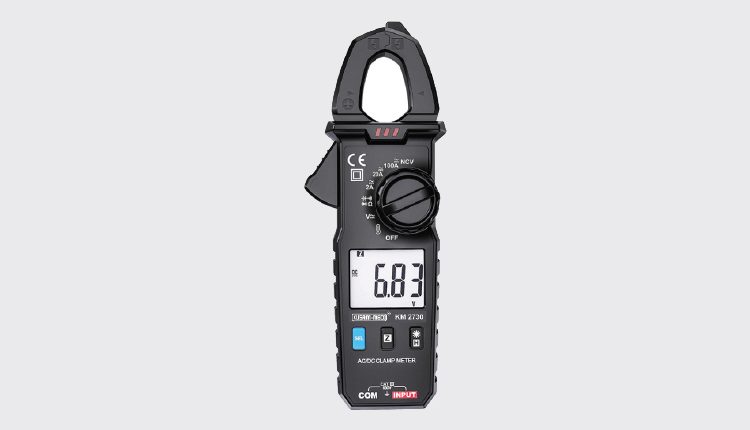

“KUSAM-MECO” AC / DC TRMS Digital Clampmeter Model – KM 999A+

KUSAM-MECO has introduced a new Low range 1999 counts  TRMS  AC/DC Clamp meter model KM 2730. It has jaw opening of 25 mm. It is suitable for measuring low currents accurately as required in Railways. Is very handy and easy to carry. The ranges are auto ranging. To take readings in the dark, it has a back light LCD display. It also has Data hold function. It also has Non-Contact Voltage Detection. The AC Current range is in 3 steps 2A, 20 Amps, 100 Amps. The least count in 2 Amps range is 0.001 Amps. The DC Current range is in 3 steps 2A, 20 A, 100 Amps. The least count in 2 Amps range is 0.001 Amps. The DC Voltage range is in 5 steps, 200 mV, 2 V, 20 V, 200 V, 600 V. The  least count in 200 mV range is 0.1 mV. The AC Voltage  range is in 4 steps 2V, 20 V, 200 V, 600 V. The resolution in
2 V range is 0.001 V. It also can measure resistance upto 20 Megohms in 6 steps 200 Ohms, 2K, 20 K, 200 K, 2Meg, 200 Meg. Capacitance measurements is upto 2000 microfarad in steps of 200 nF, 2 micro, 20 micro, 200 micro & 2000 Microfarad. It has Diode & Continuity Test. It can measure Temperature upto 1000 Degree
(K Type Thermocouple). The sampling time is 3 samples / second. It has Lo Batt function. To prolong the battery life, it has Auto Power Off function. The instrument operates on 1,5 V AAA X 2 batteries. The instrument is supplied with Test leads, User manual, Battery, Thermocouple (for 250 Degree) Carrying Case.

For more information,
www.kusamelectrical.com
