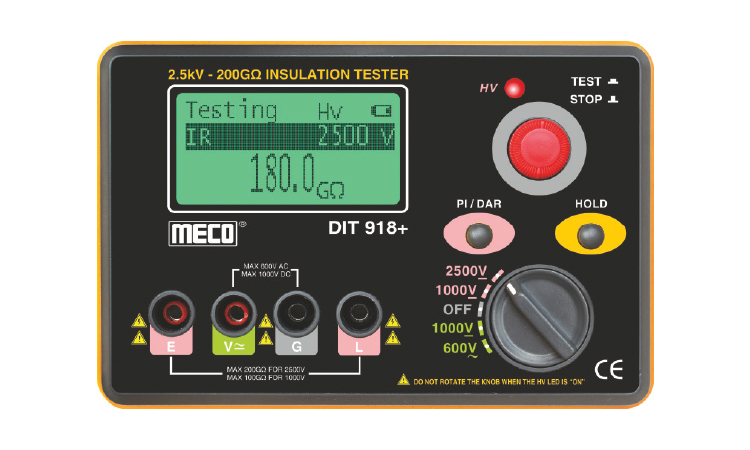

MECO 2.5kV – 200GΩ Digital Insulation Tester with P.I., D.A.R. & AC / DC Voltage Functions
DIT 918+ is a 2.5kV Digital Insulation Tester with Large LCD Dot-Matrix Display. Test Voltage Range is 1000V / 2500V DC. It measures Insulation Resistance up to 200GΩ, AC Voltage up to 600V AC and DC Voltage up to 1000V DC. It has special functions to measure P.I. (Polarization Index) and D.A.R. (Dielectric Absorption Ratio). It is ideally suited for testing of Insulation Resistance and Voltage of Transformers, Switches, High Voltage Systems, Cables, Appliances, Motors etc.
Key Features :
- Large LCD Display (128 x 64 Dot-Matrix)
- High Accuracy for Insulation Measurement and for AC/DC Voltage Measurement
- Suitable for P.I. and D.A.R. Measurement
- Range Selection & Single Person Push Button Operation
- Data Holding Function
- Measurement of Voltage upto 600V AC and 1000V DC
- Auto Range (Insulation Test)
- Red LED Indicator & Red Backlight for HV (High Voltage)
- Battery Operated
- As per IS10656-1983
- As per Safety Standard IEC/EN 61010-1 & 61010-31
- Over Voltage CAT II, 600V
- As per EMC Standard IEC 61326 Class B.
