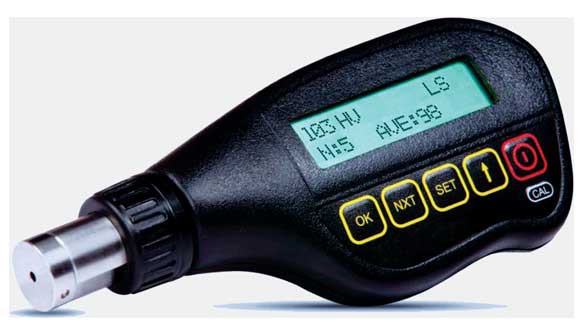

Portable Digital Hardness Tester – ITI-130

277

Fully Automatic
Flexible, Rigid And Rapid The Most Ability
The Least Restriction
Monolith, Yellow Parts

ITI-130

This device is built after two decades research and experience and disappears more limitations of conventional leeb devices and has developed portable hardness tester power range . This device has new ability by electromagnetic shooting and infrared velocity measurement and eliminates mechanical parts.

Applications:

  • Hardness testing of raw material
  • Hardness testing of heavy and light pieces
  • Hardness testing of metal pipes and CNG tanks N.D.T Testing
  • Hardness testing of welding joints
  • Hardness testing at production process
  • Hardness testing of building structures and fuel pipes

Properties:

  • Hardness test without complex setting
  • Capability of testing more Alloys
  • Showing hardness result on HLD-HRC-HRB-HB-HV-HSC
  • Memory for 3000(approx.)test and USB port trancferring
  • Calibration by standard block and user
  • Softwere user calibration
  • Small and light weight with Poly Carbonate rigid case

Technical Specification:

Measuring Direction : 360°
Display : LCD
Data Memory: 500 Readings Approx.
Battery Pack : 800^ 1600 mAH Li-ion 3.7V
Battery Charger : USB type
Continuous working period : 3000-4000
Test Approx.
Communication Interface: USB1

Accessories:

  • Standard reference block
  • Battery charger
  • convex and concave Heads and cleaning brush Hand bag
  • Manuals
  • Equation table (ASTM – A956 )
  • Software CD
  • Calibration Certificate

For more information
India Tools & Instruments Co. – BOMBAY – INDIA
Tel: 022-23428862 / 9819345050
E-mail: ojus_itico@hotmail.com
Web:www.indiatool.net
