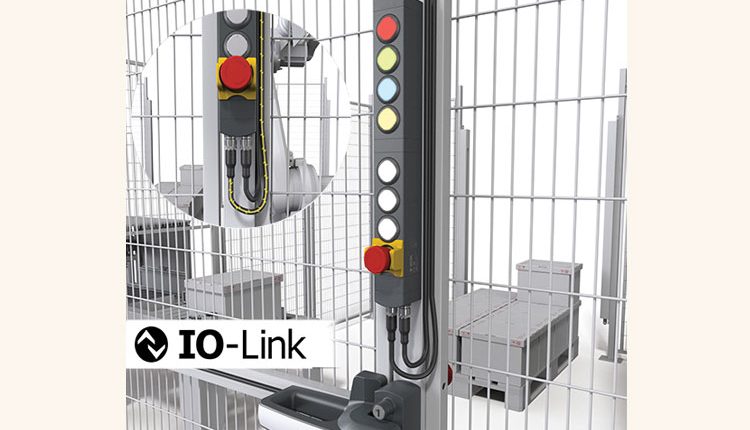

New BN series control device units
The range of Pizzato Elettrica industrial automation solutions is further expanded by the addition of the BN series control device units, a versatile modular product that adapts to any application requirement.
The main feature of the new BN series is easy installation, as the in-line holes make it simple to fit and wire the device: as it’s a plug-and-play device in fact, all you have to do is plug the connector in. Furthermore, in the case of a fault or damage, it can be replaced immediately thanks to the monolithic design of the control device unit, without the need for rewiring, avoiding any possible errors.
The control device unit is designed with non-detachable, turnable modules, that offer the user various installation options on-board the machine. After loosening the fixing screws, in fact, the upper and lower modules can be turned 90° to obtain the desired configuration.
The fixing screws are protected by push-in caps, which not only prevent dirt from accumulating, but they also block access to the screws and make it less likely someone will tamper with them.
The BN series control device unit is available in various configurations for various types of product applications: for standard applications, configurations with 1, 2, 3 or 4 devices are most suitable, while configurations with 6,7 or 8 devices are available for more complex applications to provide the user with more control and signalling devices at the same location.
The control devices are recessed in the outer housing of the control device unit so they’re protected from accidental knocks, meaning longer operational life. They only protrude a little from the front, so the BN series remains within a max. width of just 40 mm.
In all the configurations, a variety of control devices can be installed, also illuminated by integrated LEDs.
The BN series modular control device units have the same shape and dimensions as the RFID safety switches with lock of the NS series, giving machine manufacturers who already use these products the chance to create a visually uniform device and adopt an aesthetically pleasing solution.
An updated version of this device has been recently-released, which is equipped with IO-Link technology, an open communication standard for sensors and actuators, defined by the PROFIBUS User Organization (PI).
The IO-Link BN control device unit can exchange essential data on the surrounding environment, providing detailed information on the different operating phases; this device is thus able to detect any anomalies or potential risks so that the operators can quickly adopt the necessary measures.
Besides, unlike the classic BN control device unit, the IO-Link version is equipped with RGB illuminated pushbuttons.
