A robot’s range quickly extended with 7th axis from igus
UR (Universal Robots) and robolink robots acquire a 5-times larger action radius thanks to a completely new solution

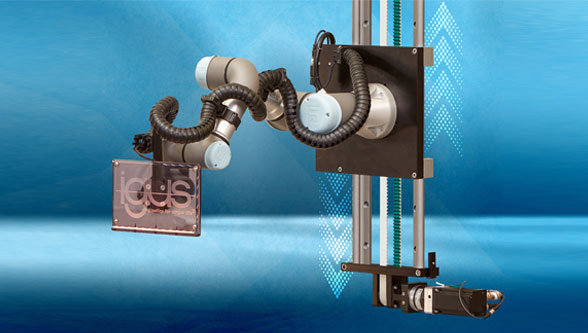

igus now offers a directly ready-to-connect 7th axis, so that a robot can move over a distance for several metres. The new complete system consists of a maintenance-free drylin ZLW toothed belt axis with corresponding adapter plate, switch cabinet, cables and software integration. For easy integration of the axis of the robot, igus has developed two adapter kits for robolink and UR robots. They enable fast and, above all, cost-effective low-cost automation.
Robots insert workpieces into a milling machine, dispense chocolate bars from vending machines and place crates on pallets, which are then stacked. But how can they move vertically, horizontally or overhead in a flexible manner? The answer is a 7th axis. Specifically, for linear adjustment, igus has developed a lubrication-free, lightweight flat axis with a stroke of up to 6m and a positioning accuracy of 0.5mm with the help of its drylin linear construction kit. To ensure that the axis can be easily combined with a robot, igus now offers overall solutions for UR3, UR5 and UR10 robots (Universal Robots), robolink DP robots and DCi robots. “A customer who acquires the new complete system receives, on the one hand, an adapter plate for easy attachment of the robot and the energy chain to the axis and, on the other, the corresponding integration solution, in other words the switch cabinet with cables, motor controller and the respective software solution”, explains Alexander Mühlens, Head of Automation Technology at igus GmbH. “If a robolink robot is used, the 7th axis can be easily controlled by means of the igus robot control software. For UR robots, we supply an UR-CAP as a direct integration solution, including all the electrical modules needed.” This means that the robot can be installed and put to work within just a few minutes.
Ready-to-connect 7th axis in desired length
The 7th axis is supplied by igus as a complete system that is ready to connect immediately, consisting of a drylin ZLW-20 toothed belt axis in the desired length exactly to the millimetre, plus the connecting cables, the switch cabinet, the power electronics, the software integration and the corresponding adapter set. Alternatively, the adapter set is separately available consisting of adapter plate and control system.
