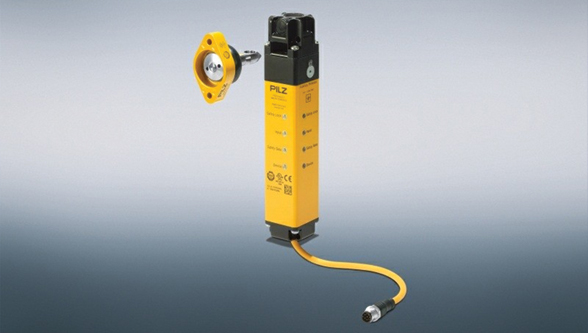

PSENmlock safety gate systems for safe guard monitoring
PSENmlock offers safety gate monitoring and safe guard locking for the protection of personnel and processes to the highest category PL e in one device. The slimline, yet robust design and many different installation options make PSENmlock both flexible to use and easy to install.
PSENmlock is a reliable door guard both for small and for larger heavy doors and gates, whether swing or sliding gates or covers and flaps. Above and beyond these possible applications , the flexibly mounted actuator ensures high tolerance compensation and unrestricted functionality even with sagging gates.Thanks to a bistable magnet, the currentless guard locking system reduces the energy consumption of the safety gate system. Diagnostic data is easily identifiable in many installation positions, LEDs on three sides of the housing, support user-friendly diagnostics whatever be the installation situation.
Irresistibly strong
With a holding force of 7500 N and the integrated latching force of 30 N, the safety gate system prevents the guard from opening inadvertently. This makes PSENmlock ,particularly suitable for machines with a hazardous overrun that makes guard locking up to PL d or PL e absolutely essential, such as rotating knives, flywheels Or robots. In addition, an integrated mechanical restart interlock prevents the guard locking system from being activated inadvertently, without the need for separate accessories. Not only does the restart interlock make operating the machine safer, it also prevents an inadvertent restart during maintenance operations!
Safety first!
In machines with an overrun, the greatest risk to the safety of the operator comes, when the safety device opens inadvertently or too early.This makes it particularly important to avoid the hazardous situation when disabling a switch. The two-channel PSENmlock guard locking control ensures that ,opening the gate does not present any risk.
Even fault scenarios such as short-circuits are detected safely, allowing any unintended opening of the gate to be prevented.
Benefits of the safety gate system PSENmlock
- Safe guard locking and safe guard interlocking up to PL e / SIL 3 in a single product
- No inadvertent activation of the guard locking due to the integral restart interlock
- Flexibly mounted actuator ensures high tolerance compensation – even with sagging gates
- Long service life ,thanks to robust mechanics and housing
- Reduced power consumption in operation
- Reduced wiring work ,thanks to series connection
- Simple and comprehensive diagnostics in combination with the SDD
- Easy installation and low-maintenance solution with the remote escape release.
